Each database has the following common tables:
MAIN table - The main table, linked to the other tables by the primary key REG_NO. The REG_NO is defined by the vendor: for ACD it's the ACD Number, for WDI it's the Derwent External Registry Name, for WOMBAT it's the WOMBAT ID. DBINFO table - A table which describes the databases. This contains the creation date, version number, copyright message. CLUSTER table - The table which contains the Jarvis-Patrick clustering information. Linked with the main table by smi2cansmi(smi, 0).Most of the Databases refer to:
CAS number - The Chemistry Abstract Registry number.
ACD043 ----------------------------------------------------------------------------- ACD_CATALOG - Supplier Compound data (1516569) ACD_NAME - Names (1263977) ACD_SUPPLIER - Supplier information (659) ACD_SUPPLIER_ADDRESS - Supplier contact information (5046)
WOMBAT041 ----------------------------------------------------------------------------- WOMBAT_ACTIVITY - Activity table (143090) WOMBAT_ACT_PROTOCOL - Activity protocol table (8029) WOMBAT_GNAM - Generic name table (6990) WOMBAT_KEYWORD - Keyword table (90605) WOMBAT_PROP - Properties table (79165) WOMBAT_REFERENCE - Reference table (3039)

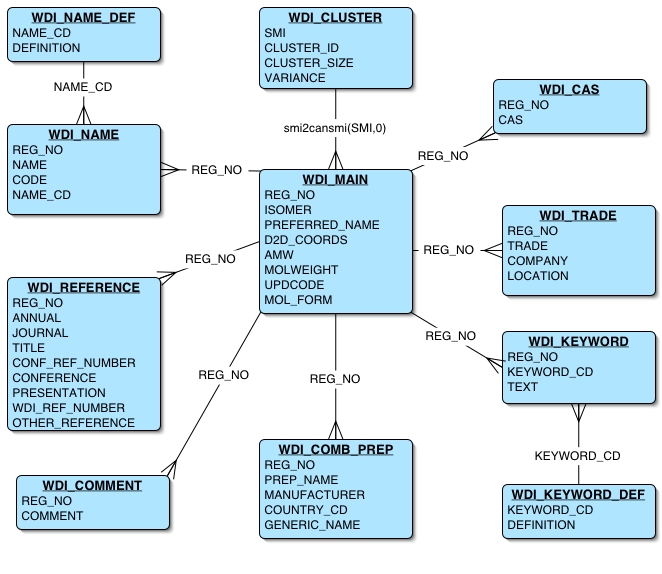

WDI043 ----------------------------------------------------------------------------- WDI_COMB_PREP - Combination/prep (34659) WDI_COMMENT - Comments (28150) WDI_KEYWORD - Keywords (721960) WDI_KEYWORD_DEF - Definition of Keyword codes table by keyword_cd WDI_NAME - Names (226102) WDI_NAME_DEF - Definition of Name codes WDI_REFERENCE - References (30829) WDI_TRADE - Trade names (116583)
SPRESI00 ----------------------------------------------------------------------------- SPRESI_BOILINGPNT - Boiling Point table (182697) SPRESI_DECOMPOSITION - Decomposition table (15278) SPRESI_DENSITY - Density table (26456) SPRESI_DISSOCIATION - Dissociation table (2606) SPRESI_JOURNAL - Journal data table (2960290) SPRESI_KEYWORD - Keyword table (8391060) SPRESI_MELTINGPNT - Melting Point table (961436) SPRESI_MUTAROTATION - Mutarotation table (6) SPRESI_PATENT - Patent table (1020361) SPRESI_REFRACTIVE_INDEX - Refractive Index table (70546) SPRESI_ROTATION - Optical Rotation table (64049) SPRESI_SUBLIMATION - Sublimation table (2577)
NCI041 ----------------------------------------------------------------------------- NCI_AIDS_CONC - Aids screening results (43850) NCI_AIDS_EC50 - EC50 Results; The concentrations necessary to see a protective effect on infected cells (39365) NCI_AIDS_IC50 - IC50 Results; The concentrations necessary to inhibit the growth of uninfected cells (38424) NCI_GI50 - The concentration that causes 50% inhibition of cell growth emphasizing the correction for cell grown at time zero. (2473096) NCI_LC50 - The concentration that signifies the cytotoxic effect 2478506) NCI_TGI - The concentration that signifies the cytostatic effect (2479327)
| WDI Values | Oracle | Thor |
|---|---|---|
| CAFFEINE | REG_NO | DATATYPE $DXRN |
| Cn1cnc2n(C)c(=O)n(C)c(=O)c12 | ISOMER | (Value used for Lookup) |
| CAFFEINE | PREFERRED_NAME | DATATYPE DPN |
| Cn1cnc2n(C)c(=O)n(C)c(=O)c12 | SMI (From WDI_Cluster Table) | SMI |
| 194.192 | AMW | DATATYPE AMW |
| 1990.1-2001.4 | UPDCODE | DATATYPE DYQ |
| C8H10N4O2 | MOL_FORM | DATATYPE DMF (C8 H10 N4 O2) |
| 1.48,1.35,1.22,0.57,1.70,-0.11,1.22,-0.77,0.44,... | D2D_COORDS | DATATYPE 2D |
SQL> select reg_no,isomer,amw from wdi_main where preferred_name='CAFFEINE'; REG_NO ISOMER AMW -------------- ------------------------------- ------------------ CAFFEINE Cn1cnc2n(C)c(=O)n(C)c(=O)c12 194.192
> thorlookup -INCLUDE_DATATYPES "DMF DPN AMW 2D DYQ" wdi043%@laluz:thor:thor% Cn1cnc2n(C)c(=O)n(C)c(=O)c12 $SMI<Cn1cnc2n(C)c(=O)n(C)c(=O)c12> $DXRN<CAFFEINE> DPN<CAFFEINE> 2D<1.48,1.35,1.22,0.57,1.70,-0.11,1.22,-0.77,0.44,-0.51,-0.28,-0.93,-0.28,-1.75,-0.99,-0.51,-1.71,-0.93..;> DMF<C8 H10 N4 O2> DYQ<1990.1-2001.4> AMW<194.192>
WDI Thor DataTypes
$DXRN is the Derwent external registry name which is the primary key REG_NO in the Oracle WDI_TABLES.
Otherwise, the correspondance of columns to Thor datatypes is pretty clear.One exception is the molecular weight; in some cases the vendor supplies a molecular weight
with their record; these are kept as a column in the MAIN table.We populate the AMW column with the result from smi2amw(isomer).
The keyword types are described in the wdi_keyword_def table, and the
name types are
In Oracle
SPRESI Journal Search Example from Oracle
SQL> select j.article,j.authors,j.citation,j.year,j.document_id,j.language,n.name
2 from spresi_main m, spresi_journal j, spresi_name n
3 where m.reg_no=n.reg_no and m.reg_no=j.reg_no
4 and n.name='BUTYLLITHIUM';
ARTICLE
-------------------------------------
AUTHORS
-------------------------------------
CITATION
-------------------------------------
YEAR DOCUMENT_I LANGUAGE
---------- ---------- -------------------------------------------------------------
PROTONATION OF ACYLLITHIUM REAGENTS BY ACETONITRILE: SYNTHESIS OF BETA-HYDROXY NITRILES
LI NANSHENG, YU SU, KABALKA GEORGE
J. ORG. CHEM., (1995), Vol. 60, Num. 18, pg. 5973-5974
1995 02X0101 96 ENG
LITHOGRAPHIC EVALUATION OF POLY(METHYL METHACRYLATE (-G-POLY(DIMETHYL SILOXANE) COPOLYMERS AS POSITIVE RESISTS
BOWDEN M., GOZDZ A., KLAUSNER C., MCGRATH J., SMITH S.
(1986), Vol. 1986, pg. 298
1986 10H0253 87 ENG
LI(,X)MO(,2)O(,4) A NEW PROMISING CATHODE MATERIAL FOR SECONDARY LITHIUM CELLS
TARASCON, J.
J. ELECTROCHEM. SOC., (1987), Vol. 134, Num. 6, pg. 1345-1351
1987 01L0243 88 ENG
SPEICHERUNG VON SILAN- UND GERMANIMINEN ME(,2)E=NR (E=SI, GE) IN FORM VON SILA- UND GERMADIHYDROTETRAZOLEN
WIBERG N., KARAMPATSES P., KIM CHUNGKYUN
CHEM. BER., (1987), Vol. 120, Num. 7, pg. 1213
1987 23X0376 87 GER
ETHYL ISOCROTONATE
TASCHNER M., ROSEN T., HEATHCOCK C., BOLTON J., FLEMING I.
(1986), pg. 108
1986 24X0144 87 ENG
SYNTHESE, STRUKTUR UND EINIGE REAKTIONEN VON TRIS- UND TETRAKIS(DIPHENYLPHOSPHINO)ALLEN
SCHMIDBAUR H., POLLOK T., REBER G., MULLER G.
CHEM. BER., (1987), Vol. 120, Num. 8, pg. 1403-1412
1987 02X0444 88 GER
SINTEZ I NEKOTORYE REAKTSII BROMIDA (TRIFENILFOSFONIO)METILDITIOKARBAMATA
ISHIDA MASARU, MIMURA TADASHI, KATO SHINZI
NIPPON KAGAKU KAISHI (J. CHEM. SOC. JPN., CHEM. IND. CHEM.), (1987), Num. 7, pg. 1317-1322
1987 02X0445 88 JAP
THERMAL REARRANGEMENT OF TERT-BUTYL SUBSTITUTED 9,10- AND 11,12-ALLENIC RETINOIDS: 11-CIS-ISOMERS OF 19,19,19- AND 20,20
,20-TRIMETHYLRETINOIDS
SHEN GIINYUAN, DELERA ANGEL, NORMAN THEA, HACES ALBERTO, OKAMURA WILLIAM
TETRAHEDRON LETT., (1987), Vol. 28, Num. 26, pg. 2917-2920
1987 04E0125 88 ENG
LIGNIN AND RELATED COMPOUNDS. X. THE SYNTHESIS OF DIMERIC-TYPE COMPOUNDS DERIVED FROM LIGNIN
RAHMAN M., ABRAMS G., PEPPER J.
(1987), Vol. 7, Num. 2, pg. 187-196
1987 07P0019 88 ENG
ASYMMETRIC ADDITIONS TO CHIRAL NAPHTHALENES. 4. AN ASYMMETRIC SYNTHESIS OF THE AB-RING OF AKLAVINONE
MEYERS A., HIGASHIYAMA KIMIO
J. ORG. CHEM., (1987), Vol. 52, Num. 20, pg. 4592-4597
1987 08E0184 88 ENG
HIGHLY EFFICIENT TOTAL SYNTHESIS OF MANOALIDE AND SECO-MANOALIDE VIA PD(0) CATALYZED COUPLING OF ALLYLHALIDE WITH CO AND
2-SILYL-4-STANNYLFURAN
KATSUMURA SHIGEO, FUJIWARA SHINYA, ISOE SACHIHIKO
TETRAHEDRON LETT., (1988), Vol. 29, Num. 10, pg. 1173-1176
1988 17E0044 88 ENG
PREPARATION OF BRIDGED BICYCLOALKANES VIA INTRAMOLECULAR <2+2> CYCLOADDITIONS OF KETENES A SHORT TOTAL SYNTHESIS OF ('+-
')-CLOVENE
FUNK RAYMOND, NOVAK PERRY, ABELMAN MATTHEW
TETRAHEDRON LETT., (1988), Vol. 29, Num. 13, pg. 1493-1496
1988 17E0062 88 ENG
SYNTHESIS OF 3'ALPHA'-HYDROXY-5'BETA',10'BETA'-EPOXYCHILIOLIDE, AN ISOLABDANE DERIVATIVE FROM CHILIOTRICHIUM ROSMARINIF
OLIUM
HARDE C., BOHLMANN F.
TETRAHEDRON, (1988), Vol. 44, Num. 1, pg. 81-90
1988 17E0074 88 ENG
ACETYLENIC CHOLESTERYL DERIVATIVES AS IRREVERSIBLE INHIBITORS OF ECDYSONE BIOSYNTHESIS
BURGER ALAIN, COLOBERT FRANCOISE, HETRU CHARLES, LUU BANG
TETRAHEDRON, (1988), Vol. 44, Num. 4, pg. 1141-1152
1988 17E0115 88 ENG
SYNTHESIS OF FLUORINE ANALOGUES OF VITAMIN E
KUMADAKI ITSUMARO, TAMURA MIHOKO, ANDO AKIRA, NANAI TAKABUMI, KOYAMA MAYUMI, MIKI TAKUICHI
CHEM. PHARM. BULL., (1988), Vol. 36, Num. 2, pg. 515-520
1988 17E0162 88 ENG
SYNTHESIS OF SPECIFICALLY DEUTERIATED 9- AND 13-DEMETHYLRETINALS
BERG ELLEN, BENT ARIE, LUGTENBURG JOHAN
RECL. TRAV. CHIM. PAYS-BAS, (1990), Vol. 109, pg. 160-167
1990 20E0124 90 ENG
GENERATION AND OLIGOMERIZATION OF BICYCLO<2.2.2>OCTUNE AND PROPERTIES OF TRIS(BICYCLO<2.2.2>OCTENO)BENZENE OBTAINED FROM
THE LINEAR TRIMER
KOMATSU KOICHI, AONUMA SHUJI, JINBU YASUHISA, TSUJI RYOTARO, HIROSAWA CHITARU, TAKEUCHI KENICHI
J. ORG. CHEM., (1991), Vol. 56, pg. 195-203
1991 13X0096 91 ENG
CONSTRUCTION OF CHIRAL QUARTERNARY CARBON CENTERS USING 3-SUBSTITUTED 5-TRIMETHYLSILYL-2-CYCLOHEXENONES: SYNTHESIS OF (+
)-'ALPHA'-CUPARENONE
ASAOKA MORIO, TAKENOUCHI KAZUYA, TAKEI HISASHI
TETRAHEDRON LETT., (1988), Vol. 29, Num. 3, pg. 325-328
1988 17E0039 88 ENG
Name and Keyword Definitions Mapping
The other change worth understanding is how we've mapped names and
keywords into the Oracle tables.
For searching efficiency we've used tables with multiple type codes
for wdi_name and wdi_keyword.
described in the wdi_name_def table.
Oracle WDI Definitions:
SQL> select * from wdi_keyword_def;
KEY DEFINITION
--- ----------------------------------------
PT ACTIVITY CLASS
SS SUBSTRUCTURE KEYWORDS
IU INDICATIONS AND USAGE
PW PRECAUTIONS AND WARNINGS
CI CONTRA-INDICATIONS
IA INTERACTIONS
AE ADVERSE EFFECTS
MA MECHANISM OF ACTION
SQL> select * from wdi_name_def;
NAME_CD DEFINITION
------- ----------------------------------------
RN DERWENT REGISTRY NAME
INN INTERNATIONAL NON_PROPRIETARY NAME
USAN UNITED STATED ADOPTED NAME
APP APPROVED NAMES
OTHER SYNONYMS OF UNKNOWN STATUS
TP MANUFACTURERS CODE NUMBERS
Now, match the Keywords to the Example:
SQL> select * from wdi_keyword where reg_no='CAFFEINE';
REG_NO KEYWORD_CD TEXT
---------------- ----------- ----------------------
CAFFEINE SS IMIDE,CYCLIC
CAFFEINE SS UREA,CYCLIC
CAFFEINE SS PURINE
CAFFEINE IU MISC: analgesia
CAFFEINE IU MISC: drowsiness
CAFFEINE PW hypertension
...
In Thor
> thorlookup -INCLUDE_DATATYPES "SSK IU PW" wdi043%@laluz:thor:thor%
Cn1cnc2n(C)c(=O)n(C)c(=O)c12
$SMI<Cn1cnc2n(C)c(=O)n(C)c(=O)c12>
$DXRN<CAFFEINE>
SSK<IMIDE,CYCLIC; UREA,CYCLIC; PURINE>
IU<MISC: analgesia;MISC: drowsiness; ...>
PW<hypertension; ... >
...
